One rugged box.
Every interface your mine site needs.

MineTAG is a low-cost, easy-install, all-in-one mining-grade computer — edge processing, LTE, GPS, Wi-Fi, CAN, serial and analog I/O in a single sealed, pole-mountable unit.

Get a Quote View Specifications

IP66Kwashdown rated
9–36Vvehicle power
−40°C to 85°Coperation

Low Cost

One integrated unit replaces a whole cabinet of parts — enclosure, computer, modem, GPS, UPS, I/O modules and antennas. Ordered to your spec, tested and potted in the factory.

Easy Install

A single 18-pin connector and one clamp mount. Bolt it to a pole, plug in vehicle power, and it boots itself. No cabinet, no cooling, no wiring loom design required.

All-in-One

Quad-core Linux computer, 4G LTE, multi-constellation GNSS, Wi-Fi, Bluetooth, CAN, RS485/RS422, six protected analog inputs and a built-in UPS — completely sealed with passive cooling.

Why MineTAG

Built for the harshest sites on earth

Ruggedised, factory-potted hardware for mining, automotive and outdoor deployments — engineered and assembled by Robotic Systems in Australia.

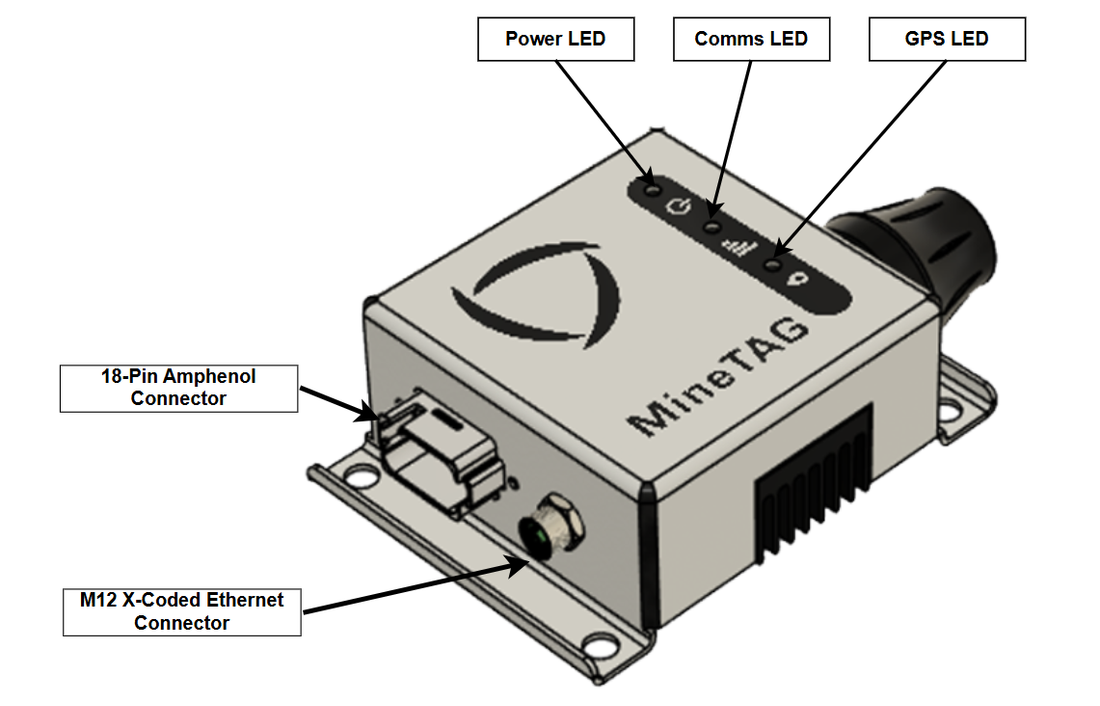

MineTAG connectors and ports: triple antenna, 18-pin Amphenol connector, M12 Ethernet, USB and HDMI

⚡

Survives dirty vehicle power

9–36V input with reverse-polarity, overvoltage and transient protection, EMI filtering and under-voltage lockout. Wire it straight into machine power.

🔋

Built-in UPS — no corrupted filesystems

Supercapacitor UPS detects power loss and gives up to 20 seconds to shut down safely. Ideal for machines with switched or unreliable power.

❄️

Sealed and passively cooled

IP66K high-pressure washdown rated, fully potted at the factory, no fans or vents. Operates from −20°C to 60°C ambient.

🧠

Real edge computing power

Raspberry Pi CM5 with a 2.4GHz quad-core ARM Cortex-A76, up to 16GB RAM and 64GB eMMC. Runs standard Linux — your stack, your containers, your models.

Every interface on board

4G LTEglobal band SIM7600G-H, nano SIM

GNSSGPS · GLONASS · Galileo · BeiDou

Wi-Fi + BT 5.0802.11 b/g/n/ac, BLE

CAN 2.0up to 1 Mbps

RS485 / RS4222-wire & 4-wire serial

6× Analog In0–30V, up to 18-bit, protected

Gigabit Ethernetoptional M12, PoE available

USB 2.0host / programming port

Applications

One platform, many jobs

Deploy the same low-cost hardware across your whole fleet and light it up with different software.

Asset Management

Track location, hours, and utilisation of every machine and light vehicle on site in real time over LTE.

AI Analytics

Run vision and machine-learning models at the edge — add M.2 AI accelerator cards for heavier workloads.

Safety Monitoring

Monitor operator behaviour, proximity and machine state to keep people out of harm's way.

Operator Assistance

Interface with machine CAN and sensors to give operators live guidance and alerts.

Fault Detection

Watch analog and CAN signals for early warning signs and phone home before failures become downtime.

R&D Data Capture

High-resolution logging of analog, serial and CAN data with GPS timestamping for field trials.

Specifications

The numbers that matter

Compute

Processor	2.4GHz quad-core ARM Cortex-A76 (Broadcom, 64-bit)
Module	Raspberry Pi CM5
Memory	2GB standard · 4 / 8 / 16GB options
Storage	32GB eMMC standard · 64GB option · NVMe via M.2
OS	Linux — U-Boot and Yocto Project compatible
UPS	Supercapacitor backup, ~20s charge, up to 20s safe shutdown

Power

Input	9–36V DC
Consumption	~4W idle · 10–15W high CPU load
Protection	Reverse polarity, overvoltage, under-voltage lockout, EMI & transient filtering
Ignition	Dedicated ignition-sense input (usable as 6th analog input)

Connectivity

Cellular	SIM7600G-H 4G module, global LTE / WCDMA / GSM bands, nano SIM
GNSS	u-blox NEO-M9N — GPS, GLONASS, Galileo, BeiDou + SBAS/QZSS/RTCM
Wi-Fi	2.4GHz 802.11 b/g/n/ac (5GHz on request)
Bluetooth	Bluetooth 5.0 + BLE
Ethernet	Optional 10/100/1000Mbps via IP67 M12 X-coded, PoE option

I/O & Expansion

CAN	CAN 2.0, up to 1Mbps
Serial	1× RS485 (2-wire) / RS422 (4-wire)
Analog	5× inputs, 0–30V, 12–18 bit, up to 240 samples/s, protected
USB	USB 2.0 combined host / programming port
M.2	1× M-Key (NVMe) + 1× B-Key (cellular / AI cards), PCIe Gen 2
Main connector	18-pin Amphenol AT13-18PA (mining-grade)

Environmental

Ingress	IP66K — high-pressure washdown rated
Temperature	−20°C to 60°C ambient
Cooling	Fully sealed, passive (no fans, no vents)
Assembly	Factory potted electronics

Mechanical

Body	124 × 145 × 60 mm (195 mm incl. antenna & brackets)
Weight	1.7 kg
Finish	Dulux powdercoat — your colour, your label
Mounting	M6 bolt pattern + pole / STAUFF mount kits

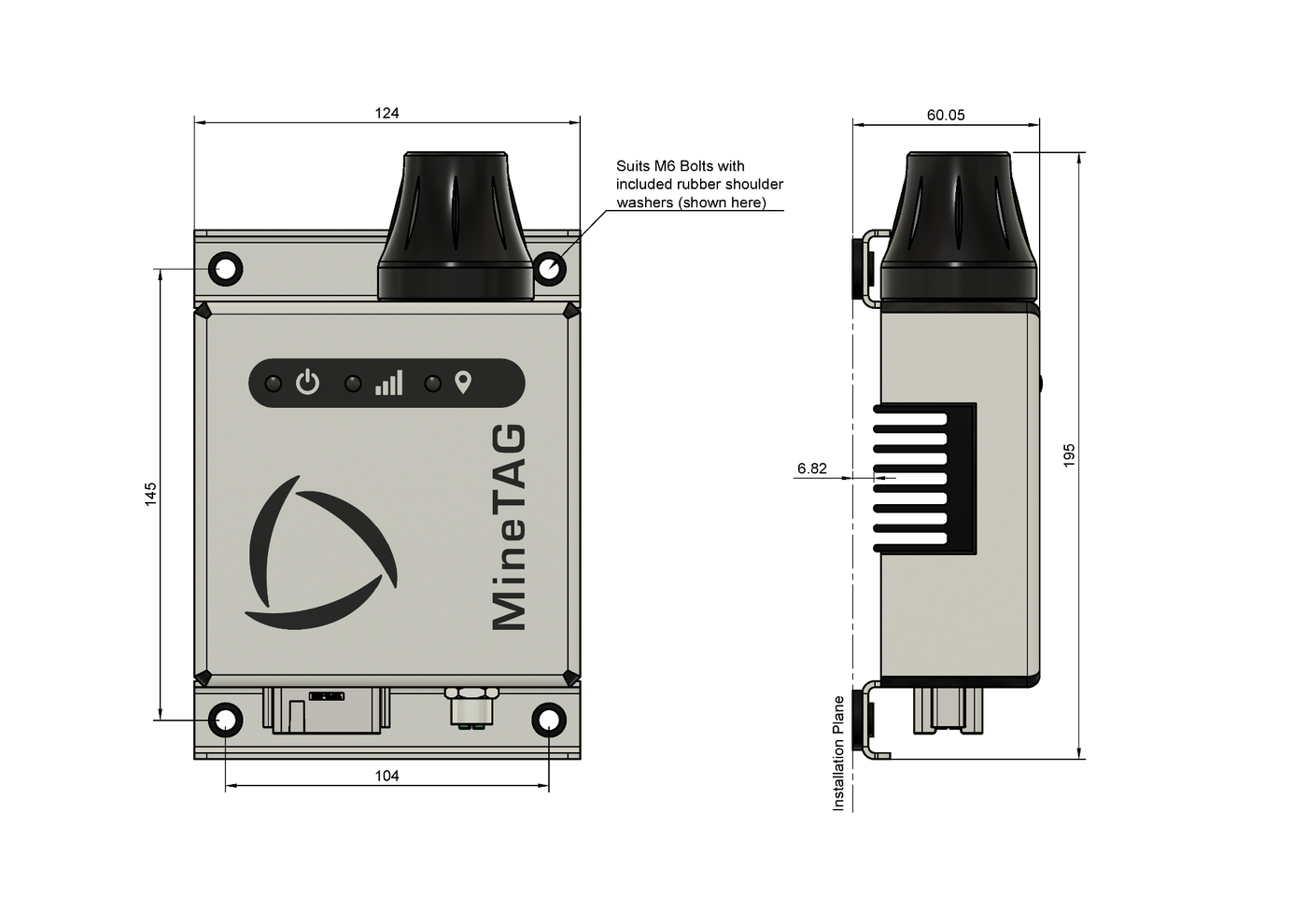

MineTAG dimension drawing: 124mm wide, 145mm bolt spacing, 195mm tall, 60mm deep — Compact footprint — 124 × 195 × 60 mm, mounts with four M6 bolts.

Customisation & Expansion

Ordered your way, expandable later

Included in standard pricing

Your SIM card installed and tested before potting
Your custom software image pre-deployed
Enclosure powdercoat in your choice of colour
Custom single-colour label printing

Optional extras

RAM up to 16GB, eMMC up to 64GB
Gigabit Ethernet via IP67 M12 connector, with PoE (802.3bt Class 5) for single-cable installs
High-gain antennas, 5GHz Wi-Fi, or N-type connectors for external antennas
M.2 M-Key: NVMe SSDs up to 1TB
M.2 B-Key: dual-SIM, alternate carriers, 5G modules (e.g. Quectel RM520), AI accelerator cards

Installation

Four ways to mount, minutes to install

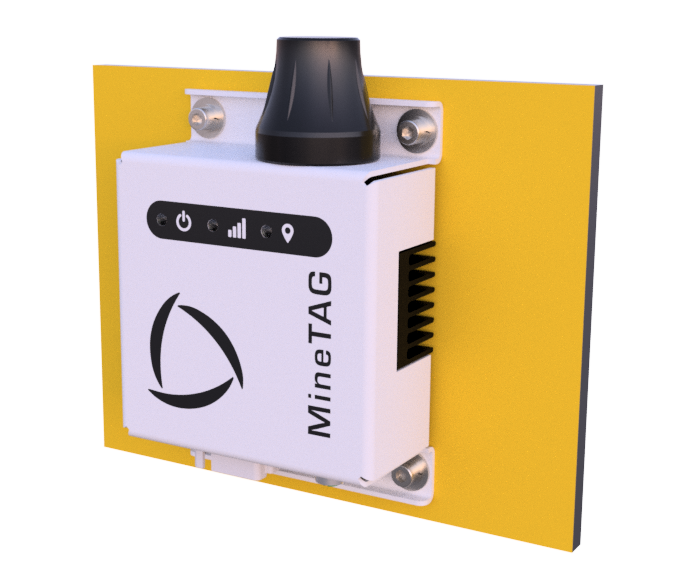

Stainless-steel mount kits cover almost any machine. Power it from 9–36V vehicle supply through one connector and you're done.

Option 1

Hard Mount / BYO

Standard M6 bolt pattern with rubber shoulder washers — bolt directly to any flat surface or your own bracket.

Option 2

Heavy Duty Pole Mount

Stainless clamp kit for 20–90mm horizontal or vertical poles. Built for high-vibration mobile equipment.

Option 3

Standard Duty Pole Mount

Threaded-band clamp for poles up to 300mm diameter — larger sizes on request.

Option 4

STAUFF Mount Plate

Stainless adaptor plate for 3S–6S STAUFF clamps, horizontal or vertical orientation.

Development Kit

Start building today

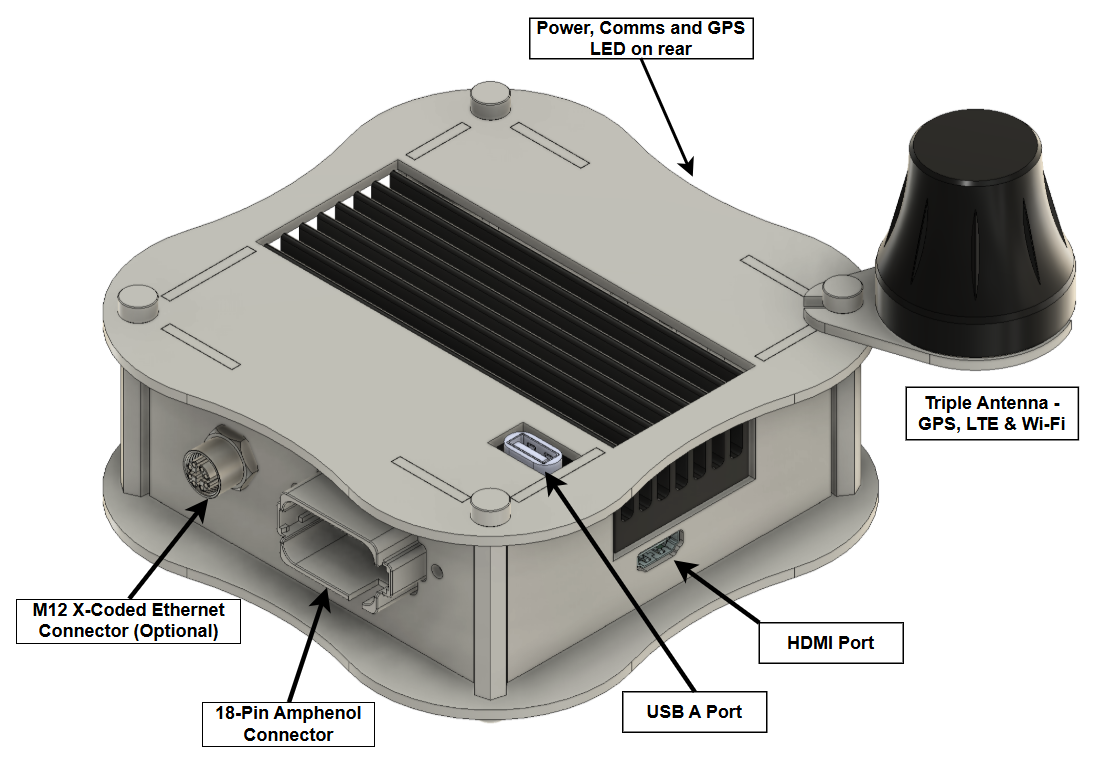

The MineTAG Dev Kit (MT-DEV) puts the full system on your bench with everything broken out — so your software is ready before your hardware ships.

Complete MineTAG processing system on an open frame
HDMI out and USB-A for keyboard, mouse and peripherals
M12 Ethernet port and SMA antenna connections
Main-connector test lead with tool-less quick connects
Ethernet test lead (M12 to RJ45)

Order a Dev Kit
